N3400
[N3400]

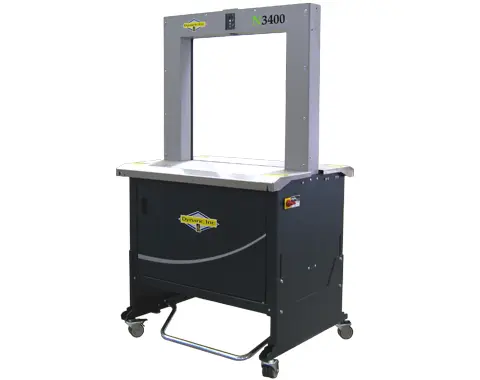

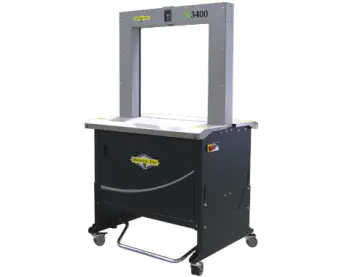

The N3400 is a High Performance Automatic Strapping Machine The machine uses standard 120v power to operate the 24v direct drive servo motors. The direct drive motors increase machine reliability which in return reduces downtime as well as save energy. The N3400 is equipped to provide reliable performance while using less energy all while being an automatic strapping machine. Keeping the machine user friendly and for quick maintenance or cleaning, the strap path can be easily opened without tools. To decrease downtime in between coil changes the N3400 can be equipped with an externally located dispenser that can utilize Dynaric XL coils. The N3400 is equipped with an automatic strap feeding system as well as an “end of strap” sensing system with automatic strap discharge once a coil has been completed. The N3400 can be customized to meet the requirements of any packaging environment.
Quantity:
Specifications
  • Overall Width: 32.5" (828mm)
  • Table Height: 31.3 - 35.8" (795 - 910mm)
  • Overall Height: 61.6 - 66.3" (1565 - 1685mm)
  • Cycle Time: Up to 55 cycles per minute
  • Strap Size: 1/4" - 1/2" (5mm - 12mm)
  • Cycle Initiation: Photo eye sensor or footbar
  • Weight: 386 lbs. (175kg)
  • Standard Arch Size: 600mm(W) x 600mm(H)
  • Tension: Adjustable electronic control
  • Seal Head Location: Bottom
  • Sealing Method: Heat Seal
  • Mobility: 3" Casters
  • Power: 120 Volt Single Phase
Features
  • Depending on tension setting and package size, can go up to 55 cycles per minute
  • Strap width 5 - 12 mm
  • Automatic strap feed device
  • Constant strap control - ASLF 'Anti-Strap-Loss-Function'

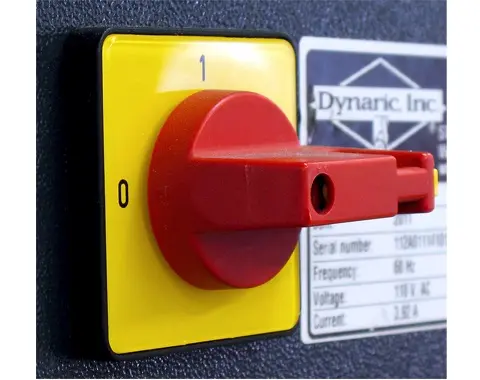

  • Power switch with lockout
  • Energy Saving, Wear-free, 24VDC direct-drive motors
  • Avoids strap jams due to the exclusive Eject Function
  • Automatic discharge of remaining strap with the Strap End Detection system
  • Internal dispenser
  • Operator side Footbar
  • Operation terminal with soft button
  • Hinged removable tabletops
  • With the tabletop sensor it allows for automatic cycle starting
  • Strap tension is controlled with adjustable torque
  • MFT 'Mono-Frame-Technology'
  • Two possible power connections located at the top of the arch or the bottom of the machine
  • Adjustable - Table height steplessly
  • Wear-free strap frame with stainless steel guides
