» N3400A | Cheever Specialty Paper & Film
Click to Enlarge
N3400A
(N3400A)
0
Package Qty: 1
Total Price:
$0.000
($0/ea)
Quantity:
Quantity:
Add to Quote

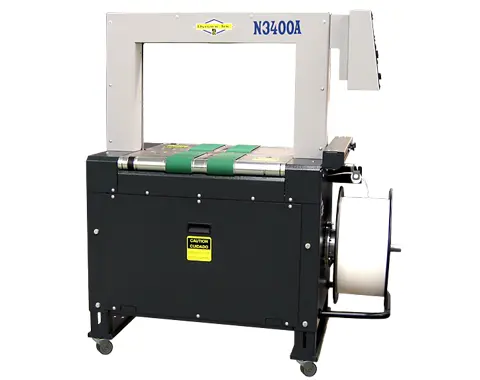

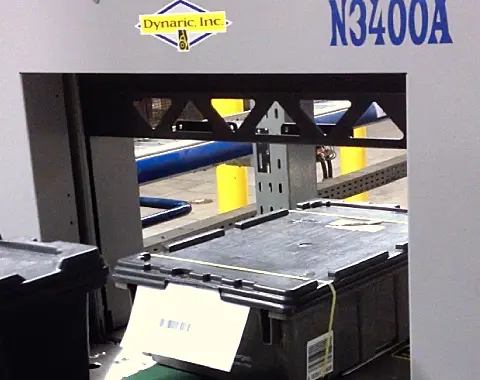

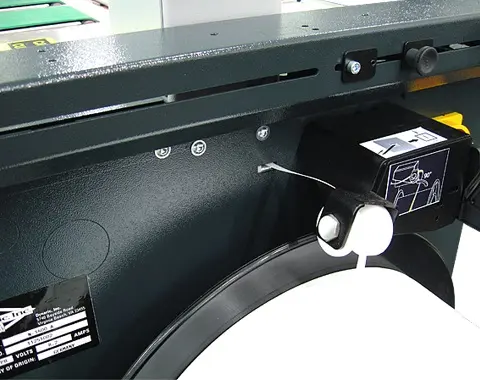

Ideal for Distribution Centers where a High Performance Fully Automatic Strapping Machine is needed. The N3400A uses standard 120v power to operate the 24v servo motors. This machine is an operator-less strapping machine, very high performance and energy saving, equipped with variable speed powered belts. The direct drive servo motors reduce downtime as well saves on energy while increasing machine reliability. The N3400A is perfect for distribution centers dealing with securing totes, cut paper and containers. It is designed to operate automatically using adjustable photo switches to detect incoming packages. The N3400A can also be switched to manual mode and be used like an offline unit. The machine is equipped with an externally located dispenser that can utilize Dynaric XL coils which helps to decrease downtime in between coil changes. The N3400A comes with an “end of strap” sensing system with automatic strap discharge once a coil has been completed. The machine is also equipped with an automatic strap feeding system.
Technical Resources
N3400A High Performance Strapping Machine
Features
Up to 35 Bundlesminute
5 - 12 mm Strap width
Stainless steel guide with a built in wear-free strap-frame
Constant strap control - ASLF 'Anti-Strap-Loss-Function'
Automatic Strap feed

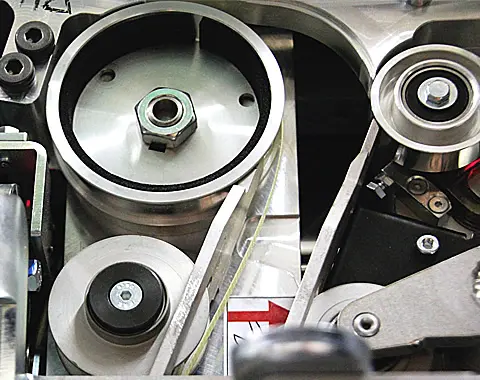

Wear-free, Energy saving direct-drive-motors
DAT 'Direct-Access-Technology'

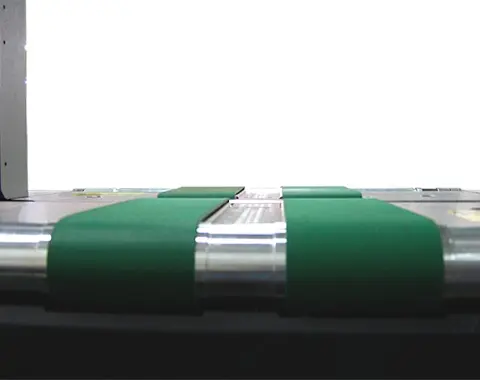

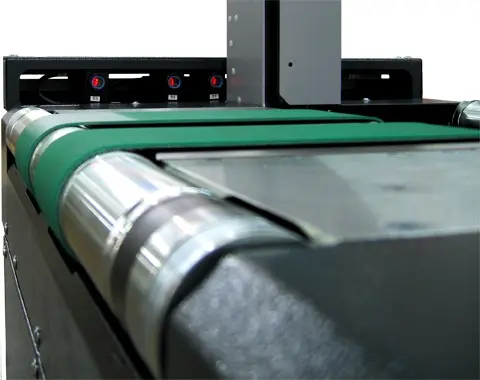

Adjustable - Conveyor speed steplessly
Adjustable Torque controlled strap tension
Downstream and Upstream interlocks
Avoids strap jam with the Exclusive Eject Function
Easily movable machine
Bundle flow control
MFT 'Mono-Frame-Technology'
Optional Bundle press
Safe without protection doors - SAO 'Safe and Open'
Adjustable Table height steplessly
User Friendly and Intuitive operator interface
Specifications
Overall Width:
23.9" (608mm)
Overall Length:
47.2“ (1200mm)
Table Height:
30.3 - 39.3" (770- 1000mm)
Overall Height:
60.6 - 69.6" (1540 - 1770mm)
Cycle Time:
Up to 35 cycles per minute
Strap Size:
1/4" - 1/2" (5mm - 12mm)
Cycle Initiation:
Photo eye sensor
Weight:
639 lbs. (290 kg)
Standard Arch Size:
600mm(W) x 600mm(H)
Tension:
Adjustable electronic control
Seal Head Location:
Bottom
Sealing Method:
Heat Seal
Mobility:
3" Casters
Power:
120 Volt Single Phase
