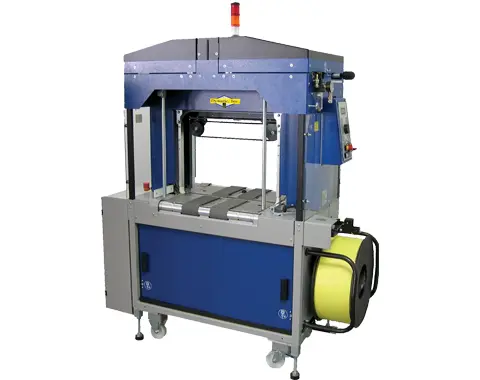

NP6000 Fully Automatic High Speed Plastic Strapping Machine
[NP6000]

Fully Automatic High Tension Strapping Machine The NP6000 is a high speed ( single strapped, regardless of bundle height, up to 49 bundles per minute) strapping system for today’s graphic industry. Building on over 25 years of experience in the graphic industry. The NP6000 can handle bundle variables with ease due to its variable speed conveyor, narrow spaced conveyor belts, soft clamp compression and bundle-conditioning system. Helping to cut maintenance time in half we add these features: removable body panels, a newly designed arch track, pre-lubricated gripper system and a quick release heater blade. There are several features that make the NP6000 very user friendly - end of strap sensor , jog dial operation, a PLC control with operation unit and display, quick change XL dispenser system and an easy strap feeding system.
Quantity:
Specifications
  • Overall Width: 23.6" (600mm)
  • Overall Length: 60.9" (1546mm)
  • Overall Height: 71.0" -78.8" (1804 - 2001mm)
  • Conveyor Height: 31.5" - 36.6" (800 - 930mm)
  • Strap Size: 5mm, 6mm, and 9mm
  • Strap Tension: 0-73 pounds of force
  • Weight: 1070 lbs
  • Operation: Electro-pneumatic
  • Air Requirement: 22.3CFM @ 87 PSI
  • Electrical: 208V / 230V / 460V, 3 phase*
  • Sealing Method: Heat Seal
  • Requirements: Approximately l.5kW
Features
  • Capable of applying 49 bundles per minute due to Servo drive technology
  • Interfaces with both up and down stream equipment have built in interlock
  • To assist in troubleshooting minor problems as well as Identify the operational status of the unit, an External operator interface with Touch Screen Technology is supplied
  • Gripper assembly maintenance are schedule at two million cycles due to Pre-lubricated gripper assembly
  • Greater tension control for different size bundles due to wider tension range.
  • To help in preventative maintenance a Quick release heater blade easy access has been added.
  • Proper release of small bundles is guaranteed due to the Small bundle strap ejection device.
  • Strapping material accepted at 5mm, 6mm
  • Eliminating possible damage to other mailroom equipment a recessed air regulator has been added
  • Automatic tension adjustment for various bundle sizes as well as Low bundle sensor
  • Football shaped bundles are handled due to extra wide conveyor belts which help in providing positive handling
  • Maintenance costs are kept low due to minimal number of moving parts and increases reliability
  • Environmentally safe and low maintenance due to Oil-less air system
  • Efficient compact design Minimizes required floor space due to efficient compact design
  • Easy loading and unloading of strap coils with quick change dispenser
  • Easily interface to existing conveyor speeds by using the variable speed conveyor
  • Uniform compression for bundle contour is achieved with Soft clamp compression
  • Prior to strapping the Bundle Condition System squares up bundles
  • Adapts to various height conveyor systems by having an adjustable height table
  • Maintenance and cleaning are easy with locking, sliding & removable panels
  • To help in eliminating strap jams an End of Strap sensor alerts the user that the strap coil is running low.
  • Six month warranty on parts and labor
