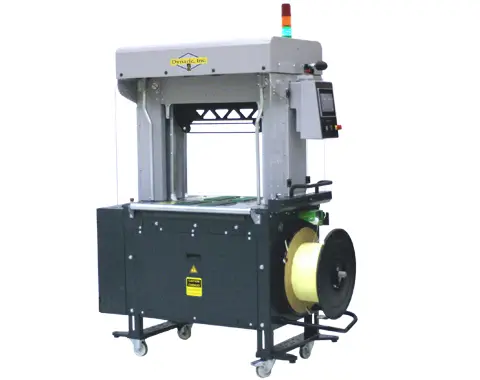

NP7000 Fully Automatic Strapping Machine

(NP7000)

Package Qty: 1

Total Price: $0.000

($0/ea)

Quantity: Quantity:

Add to Quote

High Speed Strapping Machine Designed for the Newspaper Industry The NP7000 Newspaper Bundle Strapper is packed with capabilities. Auto-adjust tensioning, side and press squeeze parameters can be setup for bundle throughput of 48 bundles per minute for ROP which provides a maximum bundle conditioning for INSERT bundles. With operator selectable preset ROP and INSERT bundle functions enables machine programming via the SMART Touch control combined with direct drive servo motors.

Technical Resources

NP7000 Fully Automatic Strapping Machine

Features

From 30”- 39” adjustable machine conveyor height to accommodate production line
When conveyors tables are opened, safety switches disables machine operation
Will minimizes downtime in adverse packaging conditions as well as maximizes machine reliability
Offers reliable strap control
Side compression and Soft clamp condition bundle prior to strapping
Controls strap tension for large and small bundles automatically

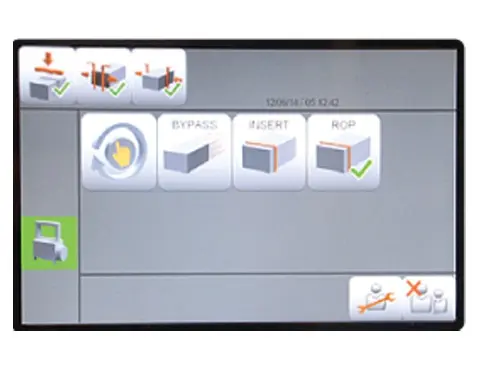

Setup and operation is easy due to the operator friendly control panel
To accommodate bundle condition and required through put is provided via the Easily adjustable touch panel
Access to machine performance data and operation
Preset bundle selection is customizable

Specifications

Capacity: Up To 45 bundles/minute
Conveyor Speed: Adj. up to 197 ft/min (60 m/min)
Strap Coil: Max. Width: 9" (228.6mm)
Strap Tension: Max. 73.0 lbs. (325 N)
Power Supply: 120V - 480V
Power Consumption: 0.35 kW
Weight: 836 lbs. (380 Kg)
Sealing Method: Heat Seal
