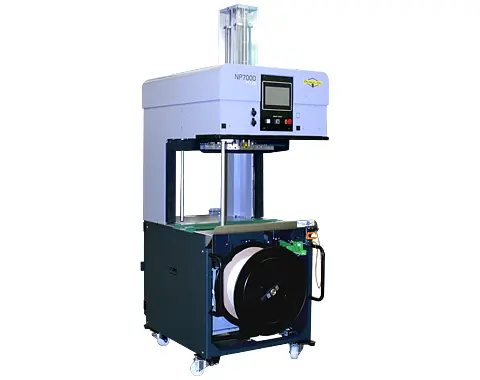

NP7000 Plus Fully Automatic Strapping Machine
[NP7000 Plus]

Fully Automatic Indexing Arch High Tension Lateral Strapping Machine The NP7000 Plus is made for running at high speed- ideal for cross strapping bundles also has a unique indexing arch strapping system. The NP7000 Plus is designed to be user friendly with a quick change dispenser system, end of strap sensor, a very intuitive smart touch icon control display and an easy strap feeding system. The entire strapping unit slides out for easy access without moving the machine offline. With its bundle-conditioning system, a soft clamp compression, variable speed conveyor and narrow spaced conveyor belts, the NP7000 Plus handles bundle variables with ease. The NP7000 Plus provides superior performance and outstanding reliability all while using 50% less power due to using GreenTech technology.
Quantity:
Specifications
  • Capacity: Up To 32 bundles/minute
  • Conveyor Speed: .65 - 3.35 f/s (0.20 – 1.02 m/s)
  • Power Supply: 380 - 550 VAC; 47- 63 Hz
  • Power Consumption: 0.40 kW
  • Weight: 990 lbs. (450 Kg)
  • Sealing Method: Heat Seal
Features
  • Allows for strap placement along the length of the bundle without rotating due to unique Indexing Strap Arch.
  • Stainless steel guides installed on the Wear-free Strap-frame
  • Strap width 5mm – 9mm, adjustable
  • Constant strap control - ASLF 'Anti-Strap-Loss-Function
  • Automatic discharge of remaining strap due to Strap End Detection system
  • Stepless automatic strap tensioning
  • Yellow indicator lamp for strap coil detection
  • DAT 'Direct-Access-Technology'
  • Avoids strap jam due to the Exclusive Eject function
  • Adjustable Torque controlled strap tension
  • Downstream and Upstream interlocks with complete plug connection
  • Full access to strapping head without moving machine offline - ETA 'Easy to Access'
  • Adjustable conveyor speed steplessly
  • Low power consumption, GreenTech
  • Ethernet/USB plug-ins for production data analysis
  • Safe with out protection doors - SAO ‘Safe and Open’
  • Icon control with SMART Touch Technology
  • Wear-free, Energy saving direct-drive-motors
  • Soft Automatic strap threading
